BOK CENTeR

TULSA, OKLAHOMA

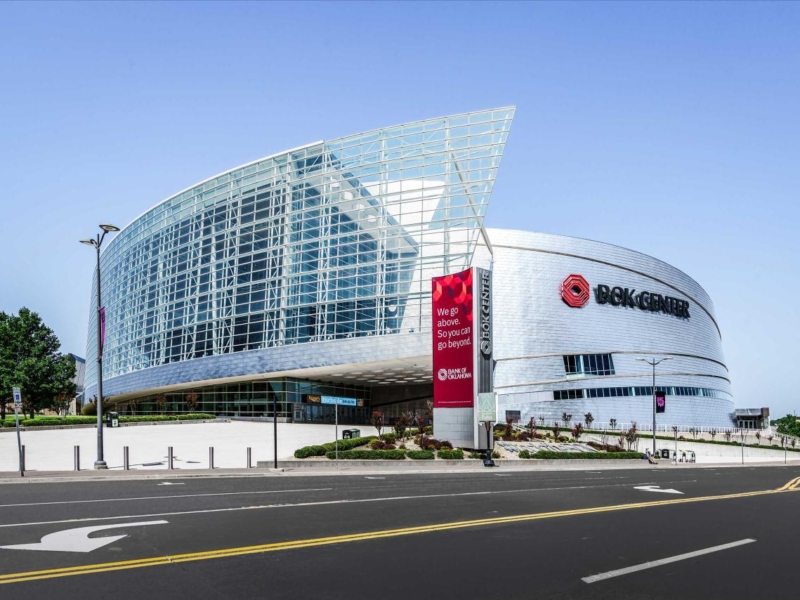

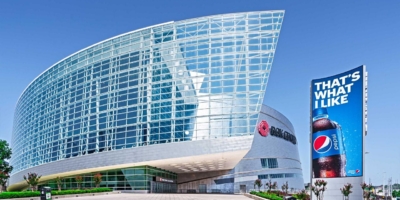

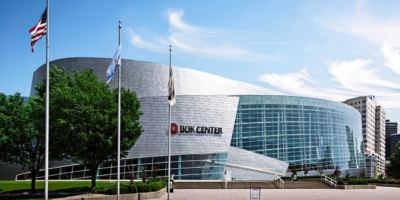

Designed by world renowned architect Cesar Pelli (the architect of the Petronas Towers in Malasia), the BOK Center features a curving glass curtain wall measuring 600 feet in length and 100 feet tall while leaning back 5 degrees with the horizontal members also on 6 degree slope while also on a segmented curve.  Meaning there is not one piece of glass in the 1,600 units in this iconic wall (literally called the ICON Wall) that is the same size or pattern and not one square corner on any of the units.  Even more impressive, this project was designed using cutting edge technology that was still in its infancy “BIM” and the entire wall was pre-fabricated and all glass was pre-ordered before the structure was erected.

Project Size

75,000 square feet

Building Type

Entertainment Venue

Curtain Wall Product

Custom 3” Large Missile Impact Rated Stick-Built Curtain Wall System

Key Features

  • Icon Wall is sloped 5 degrees and in a segmented radius with all horizontal members compound mitered on both ends.
  • More than 1,600 unique shapes and sized of insulated glass units.
  • Glass units also featured a subtle gradient ceramic frit pattern.
  • Engineered and rated for large missile impact.
  • System was fabricated with halide lamps that can glow in 1,000 different hues.

Architect

Pelli Clarke & Partners

General Contractor

Joint venture between Flintco, Inc. and Manhattan Construction Company
